Convenient Hysteresis Dynamometer for Natural Convection and Air Cooling

Hysteresis Dynamometer

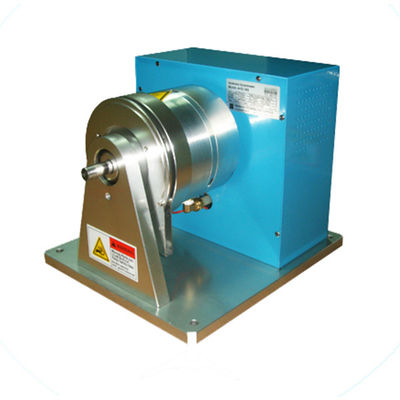

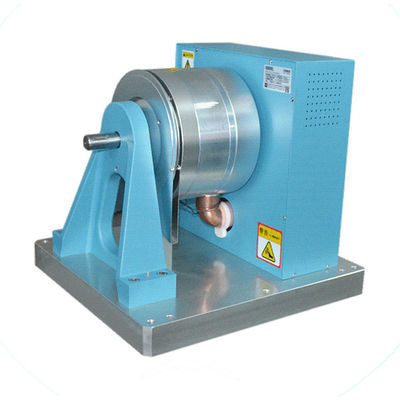

Product name:Natural convection cooling dynamometer

Hysteresis dynamometer (HD series) is universal and ideal for low and medium power testing. Hysteresis brakes do not need to rely on speed to generate torque, so it can be tested from no load to locked rotor.

Natural convection cooling dynamometer:

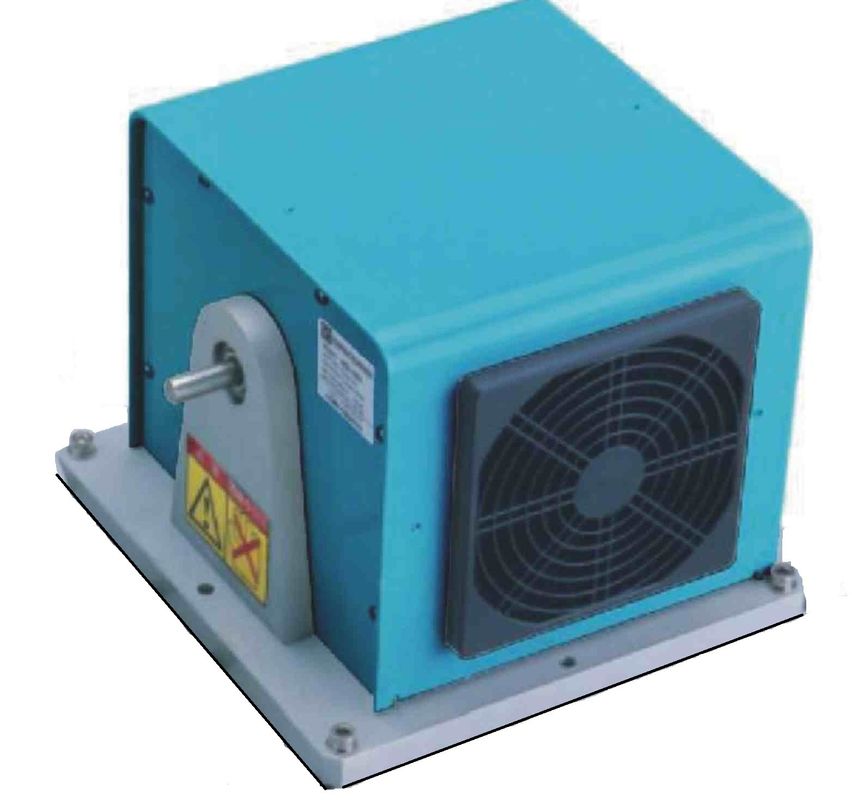

　　Hysteresis dynamometer (HD series) is universal and ideal for low and medium power testing. Hysteresis brakes do not need to rely on speed to generate torque, so it can be tested from no load to locked rotor. Brake cooling is provided by convection cooling (no wind source) or air cooling (compressed air AHD series or blower BHD series) depending on the model. Hysteresis dynamometer has continuous and short-term intermittent power to radiate more heat range. According to the size and system composition of the dynamometer, its accuracy is ±0.25% to ±0.5% of full scale. It also provides special designs for high-speed motor testing. Used in the performance testing of various AC and DC motors (torque, speed, power, etc.), it is widely used in the detection of automobile motors, household appliance motors, electric tool motors, compressor motors and aviation motors.

　　Features:

　　• 12 standard specifications, peak torque from 0.1kg·cm to 50kg·cm

　　• Hysteresis brake system: provides accurate torque load independent of speed

　　• Motor test from no-load to blocked

　　• Accuracy: ±0.25% to ±0.5% (full scale) using high-precision load and speed sensors

　　• Airflow detection: prevents overheating and operator errors

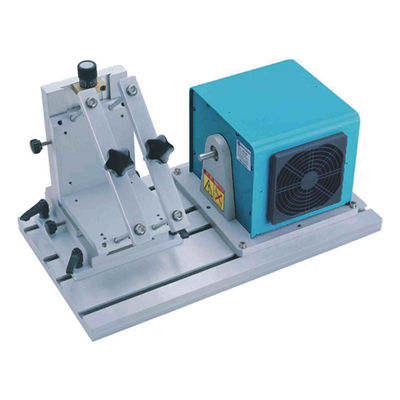

　　• Base: optional long plate type / short plate type

　　• Customized dynamometer: for the needs of special torque and special speed

　　• Use weights to adjust, easy to adjust

　　Specification table of natural convection cooling dynamometer:
