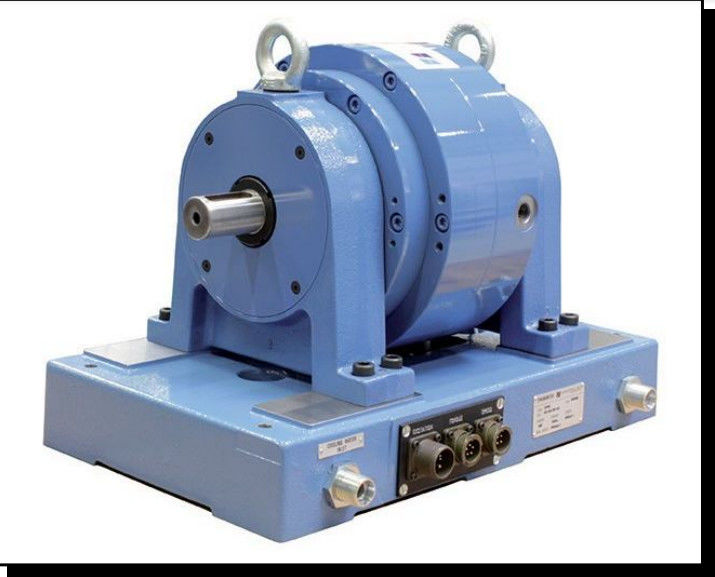

Name: 3Kw 5Kw 10Kw 20Kw Eddy Current Dynamometer Eddy Current Engine Dyno
Brand: Shenzhen Precision Motive Technology Co., Ltd.
SKU: WD
Price: 6,499.00 USD
Availability: InStock

Brand Name:	Precision Motive
Model Number:	WD
MOQ:	1SET
Price:	USD2999-9999

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Software Support:

Windows

Torque Sensor Type:

Eddy Current

Rated Power:

3Kw,5Kw,10Kw,20Kw

Cooling Method:

WATER

Weight:

5-20Kg

Max Speed:

50000 Rpm

Max Torque:

50Nm

Type:

Dynamometer

Measurement Range:

0-50Nm

Communication Interface:

RS232/RS485

Application:

Motor Testing

Accuracy:

±0.5%

Power Supply:

AC 220V/50Hz

Inertia:

See Parameter Table For Details

Temperature Range:

0-40°C

Packaging Details:

50CM*80CM*60CM

Highlight:

20Kw Eddy Current Dynamometer

10Kw Eddy Current Dynamometer

3Kw Eddy Current Engine Dyno

Product Description

WD Series Eddy Current Dynamometer for Medium to High Power Motors

WD series eddy current dynamometer is applicable for high speed, medium to high power motor test. The torque of eddy current dynamometer increases with the increase of rotating speed.

Model	MAXIMUM TORQUE RANGE (N.M)	DRAG TORQUE DE-ENERGIZED AR 1000RPM (mN.M)	NOMINAL INPUT INERTIA (Kg.m2)	Rated Voltage (VDC)	Excitaion Current(A)	Rated Power(w)	Rated Speed(rpm)	Max speed(rpm)	BRAKE COOLING METHOD
WD-302	0.3	6	2.33*10-5	24	1.2	500	22000	50000	WATER
WD-452	0.45	9	3.18*10-5	24	1.5	750	22000	50000	WATER
WD-602	0.6	12	4.03*10-5	24	2	1000	9500	50000	WATER
WD-303	3	30	2.18*10-4	24	2	3000	9500	50000	WATER
WD-503	5	50	3.01*10-4	24	2	4500	5730	50000	WATER
WD-104	10	100	0.82*10-3	24	2.5	6000	5730	30000	WATER
WD-204	20	200	1.55*10-3	24	5	12000	5730	30000	WATER
WD-504	50	500	1.27*10-2	24	2.5	15000	2865	18000	WATER
WD-105	100	1000	2.57*10-2	24	5	3000	2865	18000	WATER
