Brakes and Clutches

Stepless Torque Control Brakes And Clutches With Linear Relationship

Name: Stepless Torque Control Brakes And Clutches With Linear Relationship
Brand: Shenzhen Precision Motive Technology Co., Ltd.
SKU: HB
Price: 2,550.00 USD
Availability: InStock

Brand Name:	Precision Motive
Model Number:	HB
MOQ:	1SET
Price:	USD100-5000

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Torque Rating:

0.01 N.mm To 28N.M

Application:

Non-Contact Torque Transmission Brakes

Weight:

Lightweight

Installation:

Easy

Size:

Standard

Durability:

Long-lasting

Noise Level:

Low

Friction Coefficient:

Low

Compatibility:

Universal

Warranty:

1 Year

Type:

Disc Brake

Packaging Details:

30*30

Highlight:

Stepless Torque Control Brakes and Clutches

Brakes Clutches with Linear Relationship

Product Description

Stepless Torque Control with Linear Relationship Brakes and Clutches

The lag brake is a superior torque and tension control component. It uses the hysteresis principle, through controlling the input of the excitation current, to produce a certain amount of torque. Control current and output torque have a good linear relationship. It provides smooth, stepless, adjustable, speed-independent torque control. Except for the bearing, there is no other friction in the system, with a stable and reliable, high service speed, low noise, long service life, low maintenance cost and other advantages.

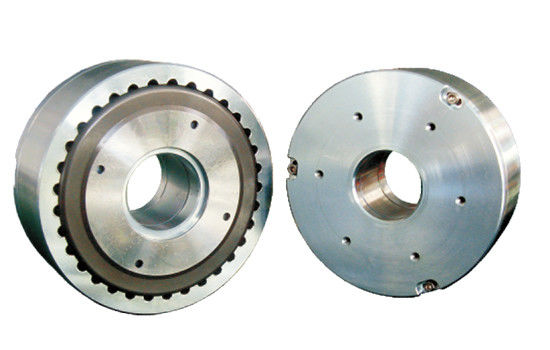

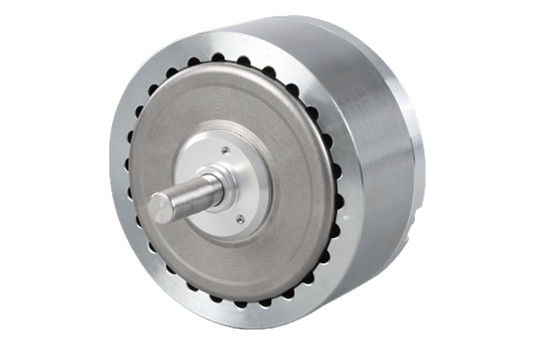

The hysteresis brake consists of the rotor and the stator magnetic pole. The rotor is made of a special hysteresis material. There is a certain gap in the stator magnetic pole, and the rotor rotates in the gap. When the coil is energized, a magnetic field is generated in the gap, causing a hysteresis effect on the rotor. When the hysteresis rotor overcomes the hysteresis force. Torque is only related to the size of the exciting magnetic current, independent of the speed, to achieve non-contact torque transmission.

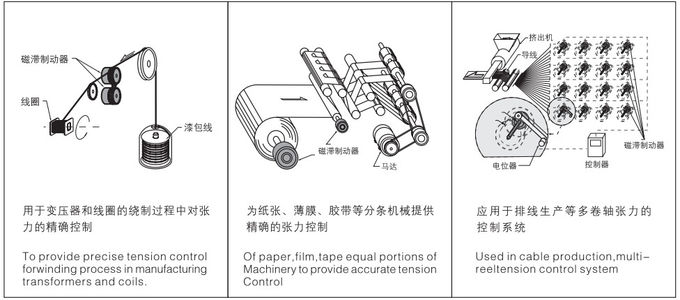

Stepless Torque Control Brakes And Clutches With Linear Relationship 0

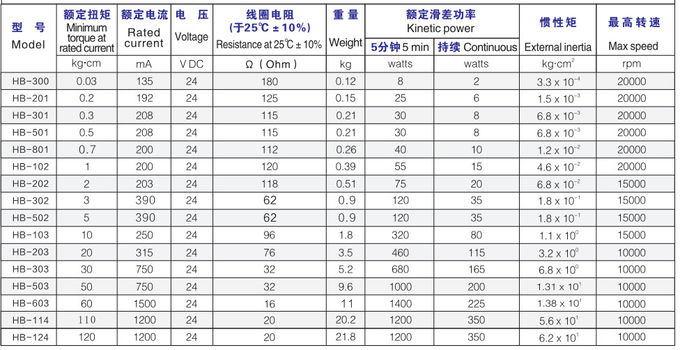

Stepless Torque Control Brakes And Clutches With Linear Relationship 3
