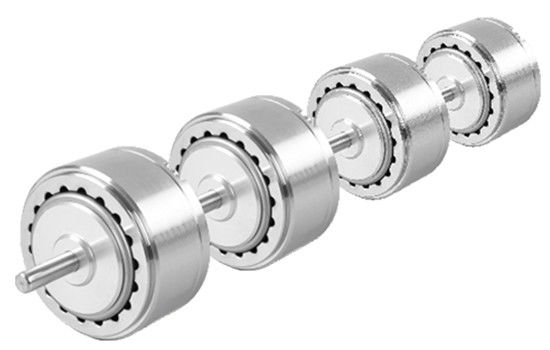

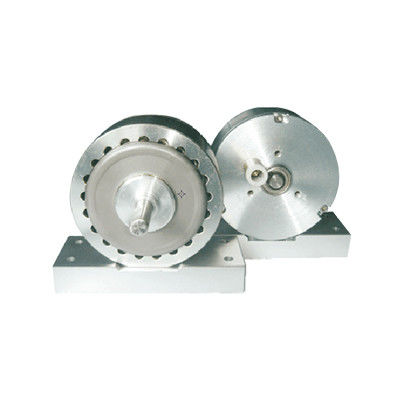

0.01 Nm To 28 Nm Brakes And Clutches Mechanical Automotive Brake And Clutch

Brand Name:	Precision Motive
Model Number:	HDC
MOQ:	1
Price:	RMB10000+1+PCS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Mounting Style:

Flange, Foot, Shaft

Torque Range:

0,01 Nm To28 Nm

Friction Material:

Permanent Magnet

Size Range:

From 1 Inch To 24 Inches

Life Expectancy:

Up To 1 Million Cycles

Type:

Mechanical

Application:

Automotive, Motor

Function:

Slowing Or Stopping Motion

Material:

Metal, Organic

Speed Range:

Up To 25,000 RPM

Operating Temperature:

Up To 40°C

Packaging Details:

30*30

Highlight:

28 Nm Brakes And Clutches

0.01 Nm Brakes And Clutches

Mechanical Automotive Brake And Clutch

Product Description

Smooth and Adjustable Speed-Independent Torque Control Brakes and Clutches

The lag brake is a superior torque and tension control component. It uses the hysteresis principle, through controlling the input of the excitation current, to produce a certain amount of torque. Control current and output torque have a good linear relationship. It provides smooth, stepless, adjustable, speed-independent torque control. Except for the bearing, there is no other friction in the system, with a stable and reliable, high service speed, low noise, long service life, low maintenance cost and other advantages.
The hysteresis brake consists of the rotor and the stator magnetic pole. The rotor is made of a special hysteresis material. There is a certain gap in the stator magnetic pole, and the rotor rotates in the gap. When the coil is energized, a magnetic field is generated in the gap, causing a hysteresis effect on the rotor. When the hysteresis rotor overcomes the hysteresis force. Torque is only related to the size of the exciting magnetic current, independent of the speed, to achieve non-contact torque transmission.

0.01 Nm To 28 Nm Brakes And Clutches Mechanical Automotive Brake And Clutch 0

0.01 Nm To 28 Nm Brakes And Clutches Mechanical Automotive Brake And Clutch 2
