Eddy Current Type Dynamometer Industrial Testing

Brand Name:	Precision Motive
Model Number:	WD
MOQ:	1SET
Price:	USD3000-32000
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Inertia:

6-1000mN.M(1000rpm)

Torque Sensor Type:

Eddy Current

Max Speed:

50,000 RPM

Cooling Method:

Water

Power Supply:

AC 220V/50Hz

Dimensions:

500mm X 400mm X 300mm

Display:

LCD

Measurement Range:

0-100 Nm

Packaging Details:

100CM*80CM*60CM

Highlight:

Eddy Current Type Dynamometer

Industrial Testing Eddy Current Dynamometer

Product Description

High-Performance Eddy Current Dynamometer for Industrial Testing

Product Description:

The WD series eddy current dynamometer is designed specifically for conducting tests on high speed, medium to high power motors. This type of dynamometer allows for accurate measurements of torque, which can increase with the speed of rotation.

Due to its precise and reliable nature, the WD series eddy current dynamometer is an essential tool for researchers and engineers in the field of motor development. Whether you are testing the efficiency of a new motor design or trying to optimize performance for a specific application, this type of dynamometer can provide valuable data and insights.

If you are interested in learning more about the WD series eddy current dynamometer or would like to explore other dynamometer options, our team of experts is here to help. We can assist you in finding the best solution for your specific needs and provide you with the support and guidance you need to achieve your testing objectives.

At the end of the day, we know that accuracy and reliability are key factors when it comes to motor testing. That's why we are committed to providing our customers with the best possible dynamometer solutions that meet their unique requirements and exceed their expectations.

Technical Parameters:

Model Specification Table

Model	MAXIMUM TORQUE RANGE (N.M)	DRAG TORQUE DE-ENERGIZED AR 1000RPM (mN.M)	NOMINAL INPUT INERTIA (Kg.m2)	Rated Voltage (VDC)	Excitaion Current(A)	Rated Power(w)	Rated Speed(rpm)	Max speed(rpm)	BRAKE COOLING METHOD
WD-302	0.3	6	2.33*10-5	24	1.2	500	22000	50000	WATER
WD-452	0.45	9	3.18*10-5	24	1.5	750	22000	50000	WATER
WD-602	0.6	12	4.03*10-5	24	2	1000	9500	50000	WATER
WD-303	3	30	2.18*10-4	24	2	3000	9500	50000	WATER
WD-503	5	50	3.01*10-4	24	2	4500	5730	50000	WATER
WD-104	10	100	0.82*10-3	24	2.5	6000	5730	30000	WATER
WD-204	20	200	1.55*10-3	24	5	12000	5730	30000	WATER
WD-504	50	500	1.27*10-2	24	2.5	15000	2865	18000	WATER
WD-105	100	1000	2.57*10-2	24	5	3000	2865	18000	WATER

Applications:

Application units of Motor Load Performance Testing

Application units of motor load performance testing include universities, motor manufacturers, laboratories, motor testing centers, and the medical equipment industry. These units use motor load performance testing to evaluate the efficiency of electric motors.

Benefits of Motor Load Performance Testing

Motor load performance testing is a beneficial tool that allows these application units to determine the capabilities of various motor models. With the help of motor load performance testing, universities can investigate the performance of motors for research and development purposes.
Motor manufacturers can use motor load performance testing to ensure their products are functioning properly. Laboratories and motor testing centers can also utilize motor load performance testing to examine electric motors for quality control purposes. Meanwhile, the medical equipment industry can employ motor load performance testing to assess the performance of motors that are used in medical equipment to guarantee patient safety.

The Importance of Motor Load Performance Testing

Overall, motor load performance testing is a crucial evaluation method that helps various application units to advance their understanding of electric motors and improve their products and services.

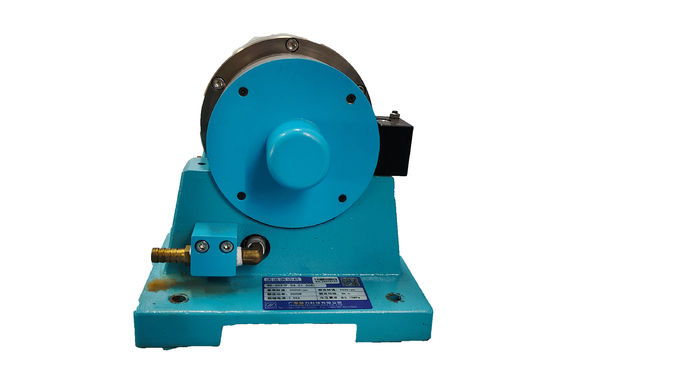

Eddy Current Type Dynamometer Industrial Testing 1

FAQ:

Q: What is an Eddy Current Dynamometer?
A: An Eddy Current Dynamometer is a type of dynamometer that uses an electromagnetic field to create resistance and measure torque and power output of an engine or motor.
Q: What is the brand name of this Eddy Current Dynamometer?
A: The brand name of this Eddy Current Dynamometer is Precision Motive.
Q: What is the model number of this Eddy Current Dynamometer?
A: The model number of this Eddy Current Dynamometer is WD.
Q: Where is this Eddy Current Dynamometer made?
A: This Eddy Current Dynamometer is made in China.
Q: What are the common uses of an Eddy Current Dynamometer?
A: An Eddy Current Dynamometer is commonly used in automotive, aviation, and industrial applications to test and measure the performance of engines, motors, and other power sources.
