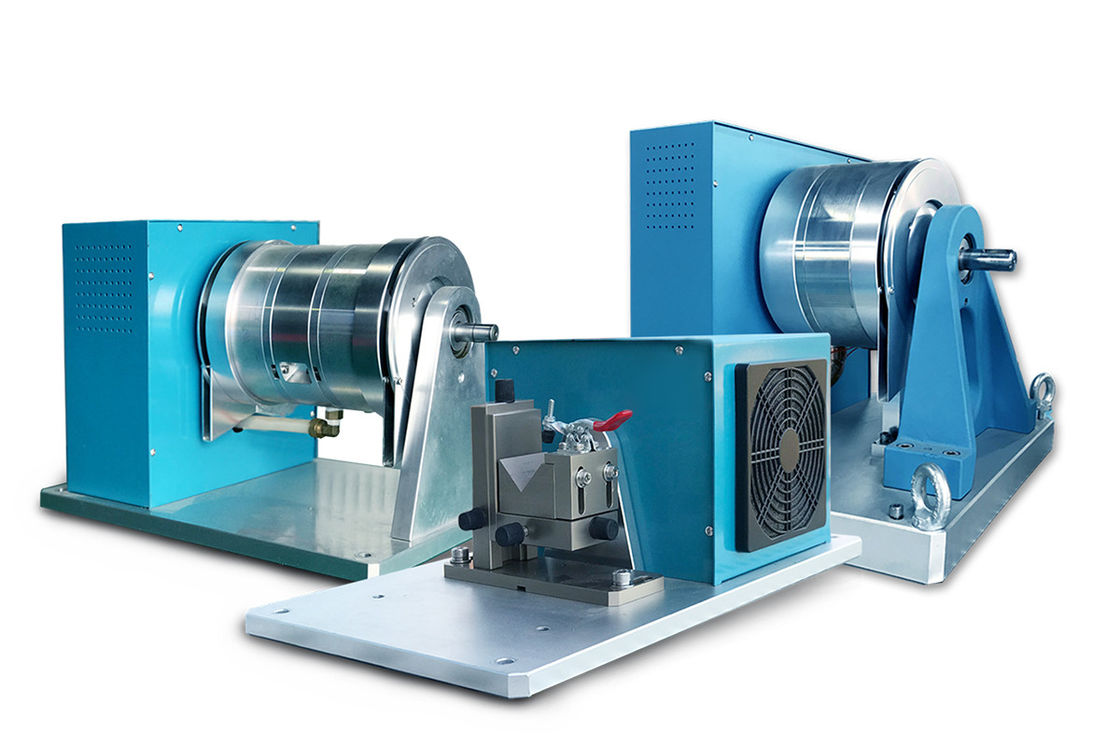

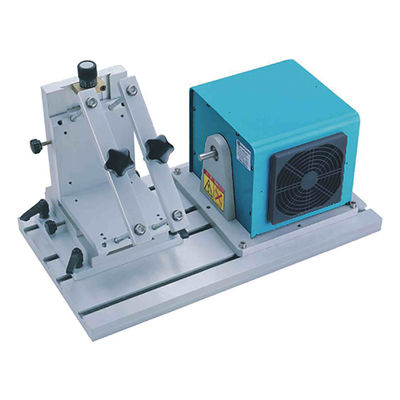

Electric Motor Dyno Testing Hysteresis Dynamometer

Product Description:

The AHD series of hysteresis dynamometers are perfect for low and medium power testing. They are universal and ideal for a wide variety of applications.
Unlike other types of brakes, hysteresis brakes do not need to rely on speed to generate torque. This means that they can be tested from no load all the way up to locked rotor conditions.
If you need a reliable and versatile dynamometer for your testing needs, the AHD series of hysteresis dynamometers could be a great choice.

Features:

The Hysteresis Dynamometer (AHD Series) is widely known for its versatility and suitability for low to medium power testing. Compared to other types of brakes, hysteresis brakes can generate torque without relying on speed, which allows for testing from no load to locked rotor.
The brake cooling is provided through two different methods depending on the model. The hysteresis dynamometer model may use convection cooling (with no wind source) or air cooling (with compressed air AHD series or blower BHD series) to prevent overheating. This feature ensures the safety of the device, especially during testing procedures that require a wide range of heat radiation, continuous, or short-term intermittent power.

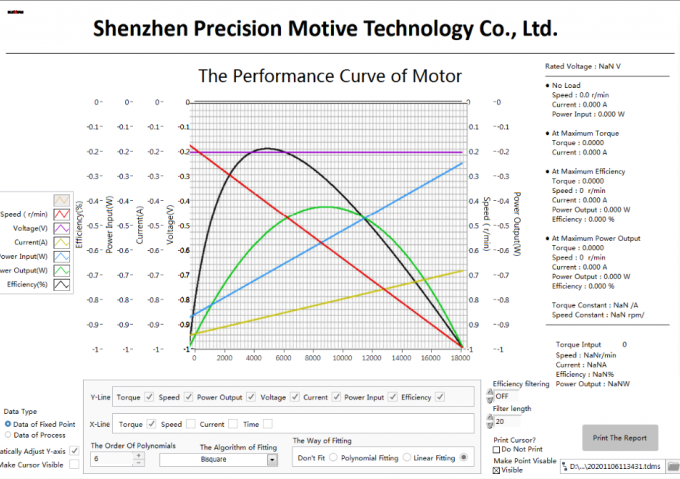

The accuracy of the hysteresis dynamometer ranges from ±0.25% to ±0.5% of full scale, depending on the size and system composition of the device. Its design also includes special features that make it suitable for high-speed motor testing. Different types of motors (AC and DC motors) can be tested for their torque, speed, power, and other performance testing needs.

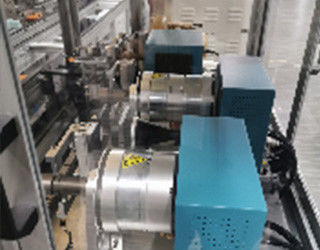

The hysteresis dynamometer is widely used in the detection and performance testing of various types of motors such as automobile motors, household appliance motors, electric tool motors, compressor motors, and aviation motors.

.
