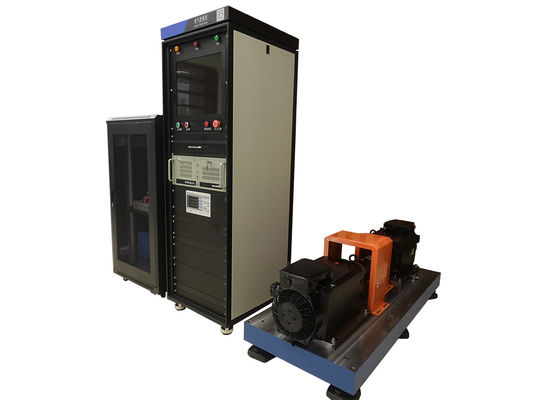

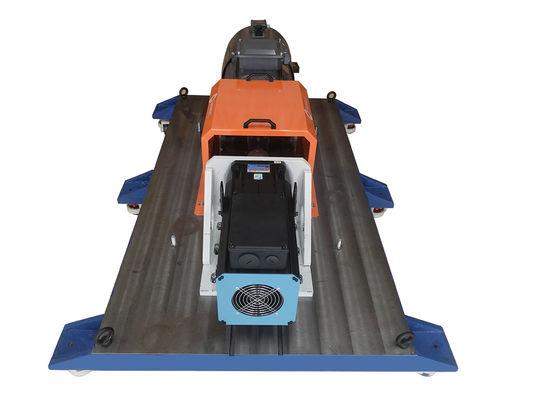

0-100N.M Motor Test Bench 220V Motor Load Test Bench USB Interface

Product Description:

The Motor Test Equipment is equipped with USB, RS232 and RS485 interfaces, which allow for easy data transfer and analysis. It also features TDMS/XLS real-time data storage, ensuring that all data is accurately recorded and easily accessible for analysis.
With an operating temperature range of 0-40°C, this equipment is suitable for use in a variety of environments. The dimensions of 500mm X 1000mm X1800mm make it easy to store and transport, while still providing ample space for testing larger motors.
Our Motor Load Performance Test Equipment is designed to provide accurate and reliable results, making it an essential tool for anyone involved in the design, manufacture, or maintenance of electric motors. Whether you are a motor manufacturer, a maintenance engineer, or a motor performance specialist, this equipment is sure to meet your needs.

Features:

• Product Name: Motor Test Equipment
• Dimensions: 500mm X 1000mm X1800mm
• Maximum Load: 100N.M
• Interface: USB,RS232 485
• Software: Included
• Accuracy: ±0.5%
• Test speed of up to 30,000 r/min
• T-N five curve graphs
• Easy to find and compare test data

Technical Parameters:

• Ordinal Number: 1
• Model Number: FTCZ-1010-HD203
• Rated Power: 580W
• Maximum Power in 5 minutes: 1000W
• Torque Test Range: 5-20 Kg.cm
• Maximum Speed: 25000 RPM
• Cooling Method: Compressed Air

• Ordinal Number: 2
• Model Number: FTCZ-1010-HD503
• Rated Power: 1000W
• Maximum Power in 5 minutes: 1500W
• Torque Test Range: 5-50 Kg.cm
• Maximum Speed: 25000 RPM
• Cooling Method: Compressed Air

• Ordinal Number: 3
• Model Number: FTCZ-1010-HD104
• Rated Power: 1800W
• Maximum Power in 5 minutes: 3200W
• Torque Test Range: 60-100 Kg.cm
• Maximum Speed: 20000 RPM
• Cooling Method: Compressed Air

• Ordinal Number: 4
• Model Number: FTCZ-1010-HD284
• Rated Power: 3800W
• Maximum Power in 5 minutes: 7000W
• Torque Test Range: 50-100 Kg.cm
• Maximum Speed: 10000-12000 RPM
• Cooling Method: Compressed Air

• Ordinal Number: 5
• Model Number: FTCF-ICS500-50
• Rated Power: 1500W
• Maximum Power in 5 minutes: 1800W
• Torque Test Range: 100-500 Kg.cm
• Maximum Speed: 1000 RPM
• Cooling Method: Water Cooler Cooling

• Ordinal Number: 6
• Model Number: FTCF-ICS500-100
• Rated Power: 3500W
• Maximum Power in 5 minutes: 5000W
• Torque Test Range: 100-1000 Kg.cm
• Maximum Speed: 800 RPM
• Cooling Method: Water Cooler Cooling

• Ordinal Number: 7
• Model Number: FTCF-ICS500-500
• Rated Power: 8000W
• Maximum Power in 5 minutes: 10000W
• Torque Test Range: 1000-5000 Kg.cm
• Maximum Speed: 500 RPM
• Cooling Method: Water Cooler Cooling

• Ordinal Number: 8
• Model Number: FTSF-ACZ7-30A
• Rated Power: 3000W
• Maximum Power in 5 minutes: 3500W
• Torque Test Range: 100-300 Kg.cm
• Maximum Speed: 6000 RPM
• Cooling Method: Natural Air Cooling

• Ordinal Number: 9
• Model Number: FTSF-ACZ7-70A
• Rated Power: 7000W
• Maximum Power in 5 minutes: 8000W
• Torque Test Range: 200-500 Kg.cm
• Maximum Speed: 6000 RPM
• Cooling Method: Natural Air Cooling

• Ordinal Number: 10
• Model Number: FTSF-ACZ7-1EA
• Rated Power: 15000W
• Maximum Power in 5 minutes: 18000W
• Torque Test Range: 100-1000 Kg.cm
• Maximum Speed: 3000 RPM
• Cooling Method: Natural Air Cooling

Applications:

The Motor Test Equipment is designed for testing various motors, including AC/DC motors, stepping motors, and servomotors. Its high-performance testing system allows for T-N five curve graphs, which shows the relationship between torque and speed, to be generated. This feature is useful in determining the motor's performance under different loads and speeds.
This equipment can perform tests at a speed of up to 30,000 r/min, making it suitable for high-speed motor testing. The testing items include torque, speed, output power, input power, current, and voltage, providing a comprehensive analysis of the motor's performance.
The Motor Test Equipment is perfect for use in various industrial settings, including manufacturing plants, research and development laboratories, and maintenance workshops. It can be used to analyze the performance of motors used in machines such as compressors, pumps, and generators.
In conclusion, Precision Motive's Motor Test Equipment is a reliable and accurate tool for motor testing, with a range of features that make it suitable for testing different types of motors and analyzing their performance under various conditions.

Customization:

Customization Services for Precision Motive FT Motor Test Equipment:

• Brand Name: Precision Motive
• Model Number: FT
• Place of Origin: CHINA
• Weight: 100kg
• Operating Temperature: 0-40°C
• Frequency: 100Hz
• Power Supply: 220V
• Interface: USB, RS232 485
• Using TDMS/XLS real-time data storage
• T-N five curve graphs
• Test speed of up to 30,000 r/min

Support and Services:

Our Motor Test Equipment product comes with technical support and services to ensure that our customers can fully utilize the product's capabilities. Our technical support team is available to provide assistance with product installation, troubleshooting, and maintenance. We also offer training services to help customers understand the product and maximize its potential. In addition, we provide repair and calibration services to ensure that the product is always functioning at its best. Our goal is to provide comprehensive support to our customers and ensure their satisfaction with our product.

Packing and Shipping:

Product Packaging:
The Motor Test Equipment is shipped in a sturdy, corrugated cardboard box that has been designed to withstand the rigors of shipping. The product is securely packed in the box with ample cushioning material to protect it from damage during transit.
Shipping:
Orders for the Motor Test Equipment are shipped via standard ground shipping. Customers can expect their order to arrive within 5-7 business days from the date of purchase. Expedited shipping options are available for an additional charge.

FAQ:

Q: What is the brand name of this motor test equipment?
A: The brand name of this motor test equipment is Precision Motive.
Q: What is the model number of this motor test equipment?
A: The model number of this motor test equipment is FT.
Q: Where is this motor test equipment made?
A: This motor test equipment is made in China.
Q: What types of motors can be tested with this equipment?
A: This equipment can test a wide range of motors, including AC and DC motors, servo motors, and stepper motors.
Q: What is included in the package when purchasing this motor test equipment?
A: The package includes the motor test equipment, a power cord, and a user manual.
