0-1000KN Motor Load Testing RS485 Motor Torque Measurement Device

Product Description:

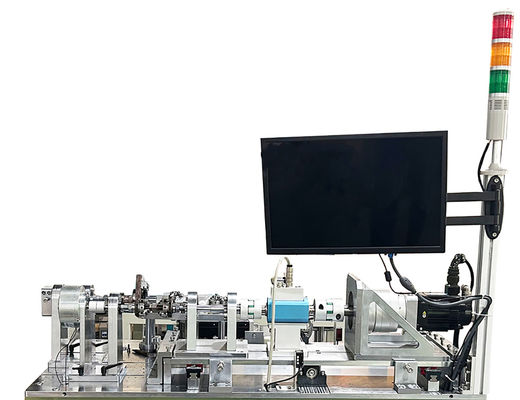

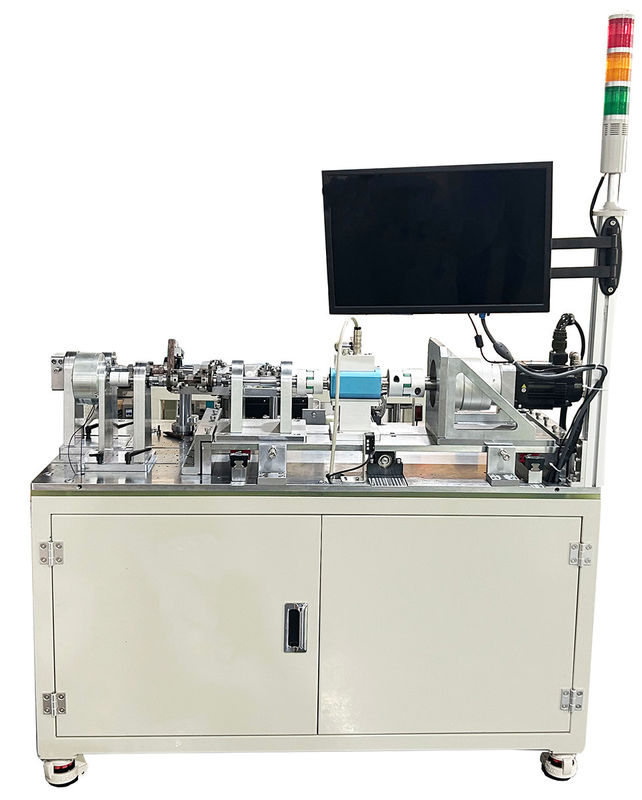

The YT series motor load performance test equipment is a comprehensive dynamometer that incorporates a magnetic particle dynamometer, hysteresis dynamometer, industrial computer, electric parameter acquisition card, motor power supply, and more. It is widely used in various applications such as the motor factory production line and motor engineers' R&D and design processes. The primary purpose of the equipment is to test the motor load performance and life tests after loading.

The motor load performance test equipment is equipped with a range of test items including torque, rotational speed, output power, input power, current, and voltage, and is equipped with standard software. The fixture has a manual clamping mechanism and can fix the motor shape within the range of 20-150mm. It accepts customized motor fixtures; the details of which can be discussed with the business.

The delivery time for the YT series motor load performance test equipment is 60 days, with a maximum power of 10KW. Overall, the equipment provides an integrated solution for motor testing that satisfies the requirements of various industries.

Features:

• Product Name: Dynamometer Load Test
• Power Supply: AC Or DC
• Storage Temperature: -20°C To 70°C
• Measurement Range: 0-1000 KN
• Resolution: 0.0001N
• Operating Temperature: -10°C To 50°C
• Keywords: Motor Load Testing Machine, Motor Torque Measurement Device, Bench Test

Technical Parameters:

Ordinal Number

Model Number

Rated Power (W)

Maximum Power in 5 Minutes (W)

Torque Test Range (Kg.cm)

Maximum Speed (RPM)

Cooling Method

Applications:

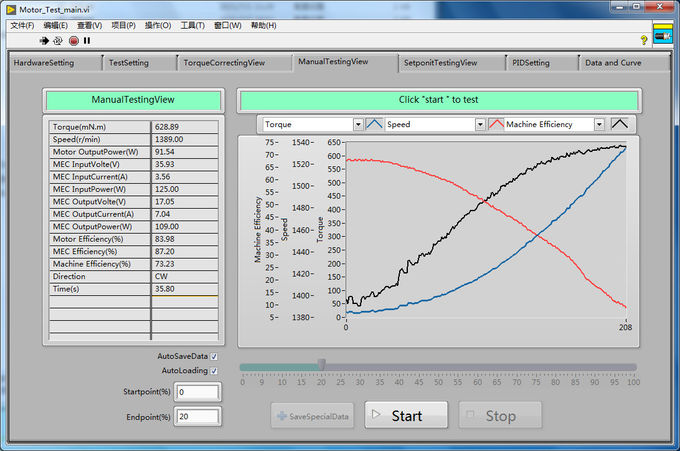

The test items include torque, speed, output power, input power, current, and voltage. This testing equipment is equipped with standard software, which allows it to output both T-N curve and data query table.

During the testing process, the device will measure the rotational force and speed of the object being tested, as well as the input and output power. Additionally, it will also monitor the voltage and current to ensure accurate readings and analysis.

The T-N curve produced from the test results is especially useful in analyzing the behavior and performance of the object under different torque and speed conditions. The data query table, on the other hand, presents a comprehensive overview of the test results, including the measured values and related parameters.

Customization:

Our Motor Load Testing Machine, also known as Dynamometer Test or Bench Test, is designed to provide accurate and reliable measurements of motor performance. Our product, the Precision Motive PWHD, is manufactured in CHINA and offers a variety of customization services to meet your specific testing needs.

With our product, you can choose from a range of communication interfaces including RS232, RS485, and USB. You can also select your preferred display units from KN, Kgf, Lbf, and N, which are displayed on a digital LCD screen. Additionally, our product can be powered by AC or DC, providing flexibility for various testing environments.

We also understand the importance of protecting your load cells during testing. That's why our product is equipped with IP67 load cell protection to ensure accurate and safe measurements.

Support and Services:

The Dynamometer Load Test product comes with comprehensive technical support and services to ensure that our customers can make the most of their investment. Our team of experienced engineers and technicians provide the following services:

• Installation and commissioning of the product
• On-site training for users and operators
• Regular maintenance and calibration services
• Remote technical support and troubleshooting
• Repair and replacement of faulty components

We also offer customized solutions to meet specific customer needs and requirements. Our goal is to provide reliable and efficient services that maximize the performance and longevity of your Dynamometer Load Test product.

Packing and Shipping:

Product Packaging:

The Dynamometer Load Test product is packed in a sturdy cardboard box to ensure it reaches its destination safely. The box is labeled with the product name and a handling label to indicate which side is up. Inside the box, the product is wrapped in bubble wrap for additional protection.

Shipping:

The Dynamometer Load Test product is shipped via a reputable courier service to ensure timely and safe delivery. The shipping cost will be calculated based on the destination and the weight of the product. Once the product is shipped, the customer will receive a tracking number to monitor the delivery status.

FAQ:

Q: What is the brand name of the Dynamometer Load Test?

A: The brand name of the Dynamometer Load Test is Precision Motive.

Q: What is the model number of the Dynamometer Load Test?

A: The model number of the Dynamometer Load Test is PWHD.

Q: Where is the Dynamometer Load Test manufactured?

A: The Dynamometer Load Test is manufactured in China.

Q: What is the capacity range of the Dynamometer Load Test?

A: The capacity range of the Dynamometer Load Test is 250 kg to 10,000 kg.

Q: What is the accuracy of the Dynamometer Load Test?

A: The accuracy of the Dynamometer Load Test is +/- 0.2% of full scale.
