3D Adjustable Test Fixtures

Brand Name:	Precision Motive
Model Number:	HDJ
MOQ:	1SET
Price:	USD 300-1200
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Packaging Details:

10CM*80CM*20CM

Highlight:

Adjustable Test Fixtures

3D Test Fixtures

Product Description

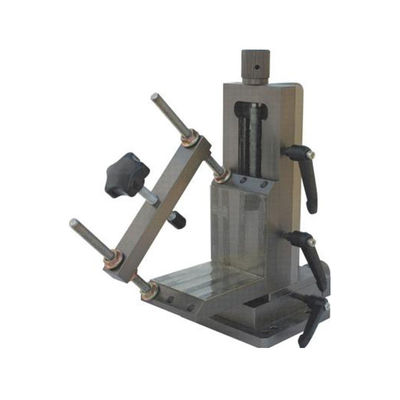

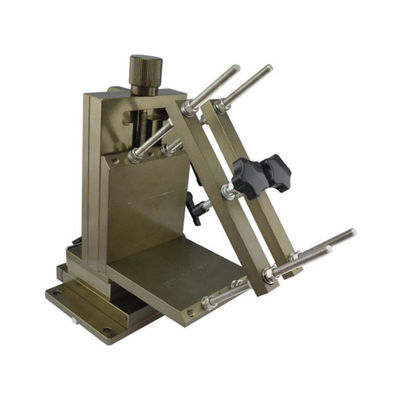

3D Adjustable Test Fixtures

Fixture characteristics:

　　•Maximum clamping motor diameter 30cm

　　•Applicable to all tension hysteresis dynamometer series products

　　• Safety lock structure

　　• Guide rail slider facilitates alignment of motor and dynamometer

　　• Easy three-dimensional adjustment operation

　　• Vibration protection

　　• Anti-scratch motor surface design

　　• No tool adjustment, manual operation

　　• Can be used with tension T-slot bottom plate or test bench

　　product description:

　　HDJ series fixtures use one or two beams to cooperate with the locking screw to fix the housing of the motor under test in the radial direction. The distance of the frame beam can be adjusted by bolts, which is suitable for round motors or square motors with different diameters. In addition, V-shaped fixtures or L-shaped fixtures can also be customized to match the motors under test or external rotor motors with irregular shapes.

　　In order to protect the outer surface of the motor under test from damage, the top of the locking screw is protected by plastic contact and is shockproof. The parts of the jig contacting the surface of the motor are made of Ninong rubber to prevent the surface from being scratched and damaged.

HDJ-100

HDJ-150

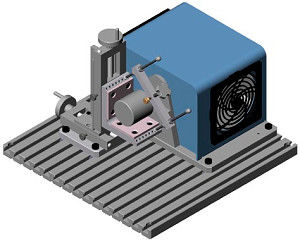

Beam locking bolt rubber pressure block motor T-slot bottom plate dynamometer bottom plate Nylon Pads

3D Adjustable Test Fixtures 0 3D Adjustable Test Fixtures 1

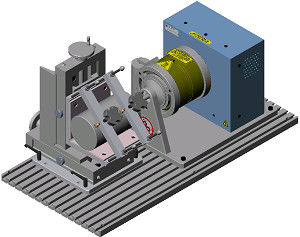

Beam frame Dynamometer bottom plate Adjustable wrench T-slot bottom plate motor

3D Adjustable Test Fixtures 4

3D Adjustable Test Fixtures 5

HDJ-40

HDJ-300

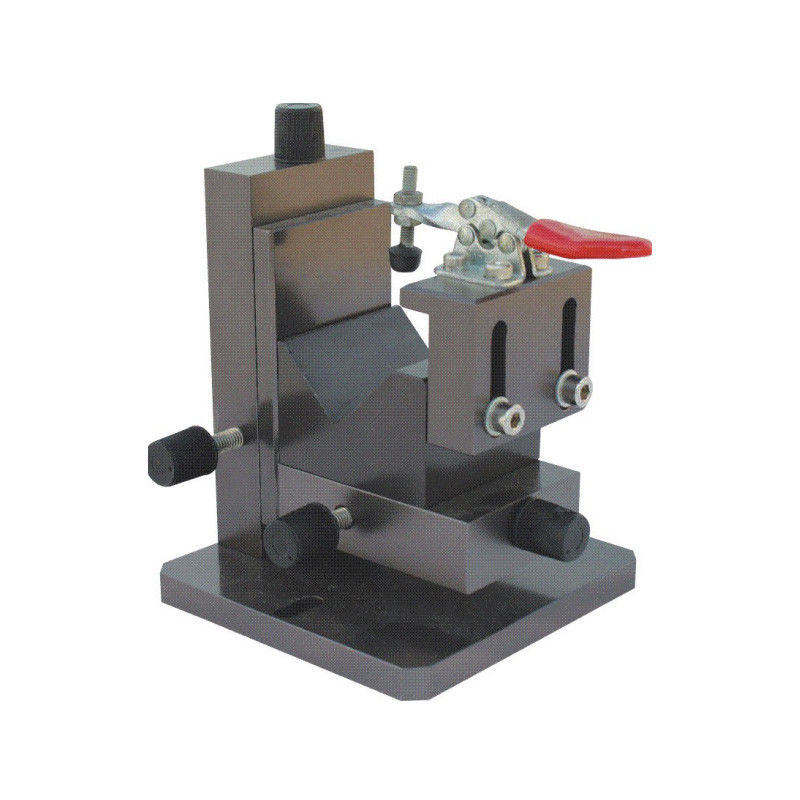

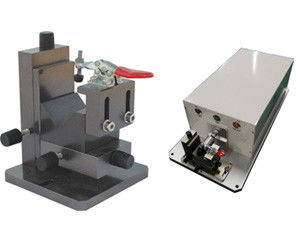

HDJ-40 fixture is suitable for fixing micro-motors, used with portable dynamometer or cogging torque dynamometer system.

3D Adjustable Test Fixtures 6 3D Adjustable Test Fixtures 7

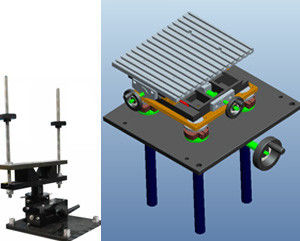

HDJ-300 fixture is suitable for fixing large-diameter inner rotor motor, and it is more convenient to use with 3D test bench.

3D Adjustable Test Fixtures 8 3D Adjustable Test Fixtures 9

　Comparison of fixture models:

Types of	HDJ-40	HDJ-100	HDJ-150	HDJ-300
Measured motor outer diameter	Maximum diameter 40mm	Maximum diameter 100mm	Maximum diameter 150mm	Maximum diameter 300mm
Dynamometer	Dynamometer below 1kg·cm	1~30kg·cm dynamometer	30~60kg·cm dynamometer	Dynamometer above 50kg·cm
Fixture base	T-slot bottom plate	T-slot bottom plate	T-slot bottom plate	T-slot bottom plate or 3D countertop
Fixed beam	1	2	2	1
