High Speed Dynamometer Controller Motor Testing Equipment

Brand Name:	Precision Motive
Model Number:	HDC
MOQ:	1SET
Price:	USD 4000-5000
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Packaging Details:

25CM*50CM*15CM

Highlight:

High Speed Dynamometer Controller

Dynamometer Motor Testing Equipment

Product Description

Product name:Standard Dynamometer Controller

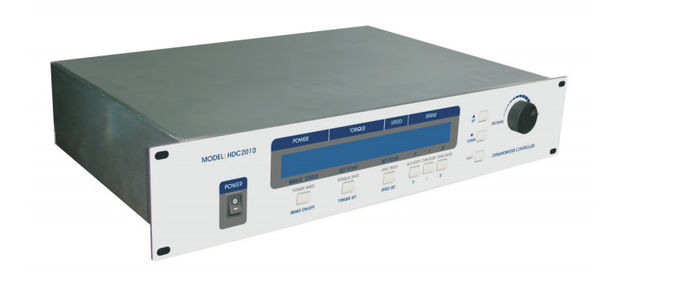

HDC-2010 high-speed programmable dynamometer controller adopts top digital signal processing technology to provide outstanding motor test performance. Designed to come with any hysteresis, eddy current or magnetic powder dynamometer.

Features:

　　• Dual channel: enables the device to support up to two independent or compound configuration test devices

　　• Built-in alarm system: used for power, speed, torque, temperature, air flow, water flow, electrical overload and external input

　　• Torque/speed analog output: one for data acquisition system or paper tape recorder interface

　　• Standard computer interface

　　• High-speed data acquisition: about 100 per second via GPIB

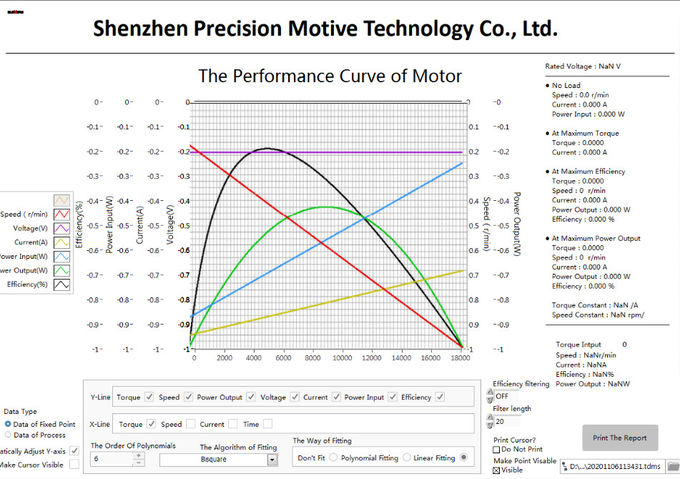

　　•Quick and complete performance curve data acquisition: no load to stall within a few seconds

　　• Speed & torque operation mode: Provide independent PID settings to strengthen dynamometer control

　　• Built-in adjustable current power supply: only used for hysteresis dynamometer

　　• Optional torque display units: English, metric and SI standard units

　　• Dynamometer overload protection

　　• Digital filter: removes interference signals from the torque signal

　　•Cross-loop function: allows closed-loop control of the brake through the torque sensor

　　• Programmable digital PID value: control and storage or manual control through LABVIEW software

　　• Save: save the programmed values within the configuration

　　• Auxiliary ±10VDC analog input

　　•Single-point or multi-point torque and speed stability test: Pass LABVIEW software test

　　• Closed box calibration
