RS232 RS485 Electric Motor Dynamometer Cogging Test System 50Hz

Versatile Cogging Test System for Various Motor Sizes and Applications

Product Description:

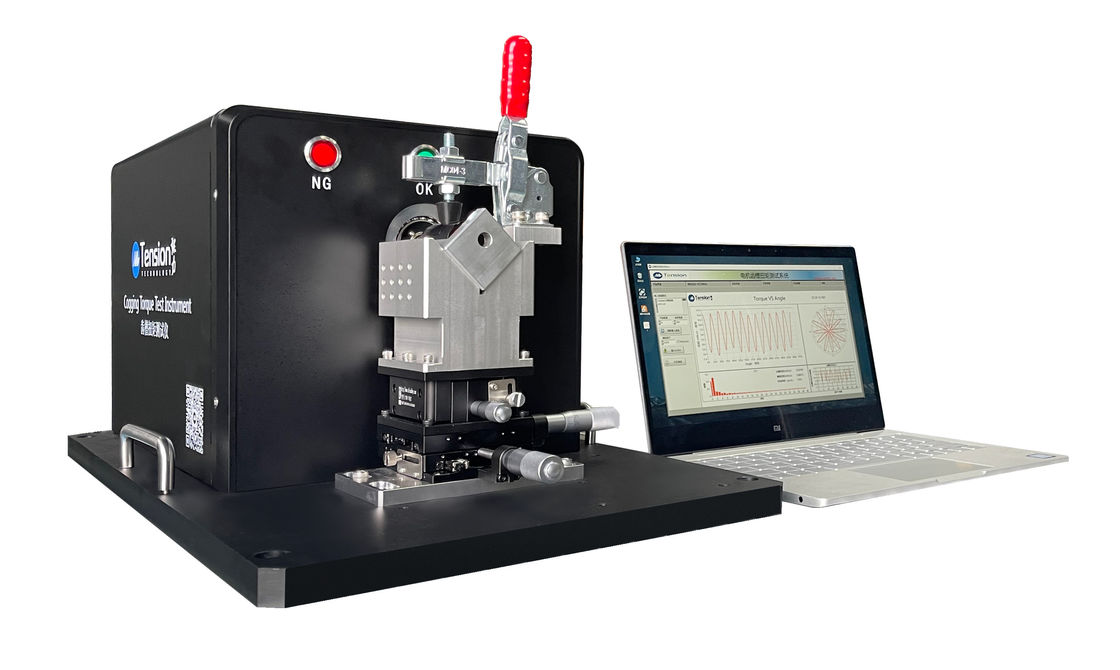

   Precision Motive offers the Cogging Test System, which is a standalone system designed to measure and control different types of torque. This system can detect and measure Detent Torque, Cogging Torque and Friction Torque, and is equipped with a precision geared motor and a JT Series Torque Sensor, which includes an encoder with 5000 pulses.

   The torque sensor models, JT101 to JT303, are equipped with security clutches that prevent system overload from mishandling when not in use. The geared motor drives the Motor Under Test (MUT) at a low speed from 1 to 10 rpm, while measuring the cogging torque's angle position. Depending on the chosen torque sensor, the torque measurement covers a range of up to 2 N∙m, with an accuracy of ± 0.1 mN∙m (for JT 101 – 10 mN∙m and JT 303 – 3000 mN∙m).

   The system is controlled by its executable software, which enables users to display and analyze cogging torque's acquired data. It enables peak-to-peak measurement of cogging torque, polar or X-Y graphs, and FFT analysis. It also allows for the storing of measured data and comparison of performance data by overlaying up to 5 graphs. Curiously, the software features some interactivity, allowing the user to read accurate values from measurement points via a cursor. Additionally, users can save measured parameters as text file TXT. To improve the system's accuracy and function control, the software also includes a zero offset adjustment routine, which checks the transducer signal over a complete turn (with the test sample MUT not connected to the system).

Technical Parameters:

Applications:

The JT model is also equipped with a cogging force analysis system, which makes it an indispensable tool for analysis in the field of electrical machine design. It has been designed to operate under a wide range of humidity, from 10% to 90%, and storage temperatures ranging from -20°C to 40°C. This ensures that the product is durable and can operate in different environments.

The JT model is also equipped with communication interfaces such as RS232/RS485, which allows it to be connected to a computer or other devices, thus enabling data transfer and analysis. The JT model has dimensions of 50mm X 40mm X 30mm, making it easy to carry and use in different locations.

The Precision Motive JT model is suitable for a variety of occasions and scenarios. It can be used in research and development, manufacturing, and quality control of electrical machines. It is an essential tool for motor designers, engineers, and manufacturers. The JT model can also be used in the automotive, aerospace, and robotics industries, among others. This product is an excellent investment for anyone who is looking for an accurate, efficient, and reliable cogging test system.

Customization:

• Brand Name: Precision Motive
• Model Number: JT
• Place of Origin: CHINA
• Humidity Range: 10% - 90%
• Software: Windows-based
• Resolution: 0.0001 Nm
• Power Supply: AC 220V, 50Hz
• Dimensions: 50mm X 40mm X 30mm

Support and Services:

The Cogging Test System is a comprehensive solution for measuring the cogging torque of electric motors. Our technical support team is available to assist with installation, calibration, and troubleshooting of the system. We also offer training services to ensure proper usage of the system. Our services include:

• Installation assistance
• Calibration support
• Troubleshooting and repair services
• Training services

Our team of experts is dedicated to providing top-notch technical support and services to ensure our customers' satisfaction with the Cogging Test System.
