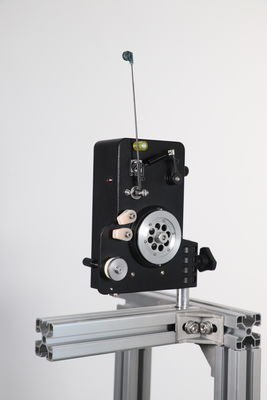

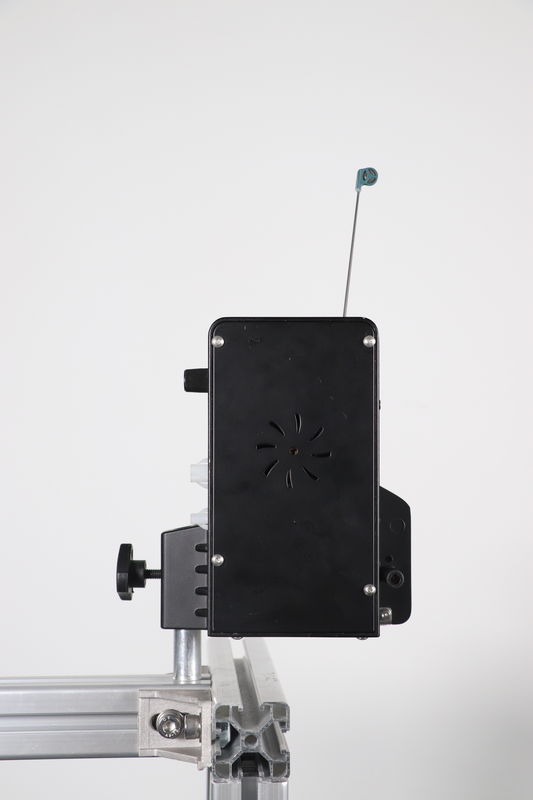

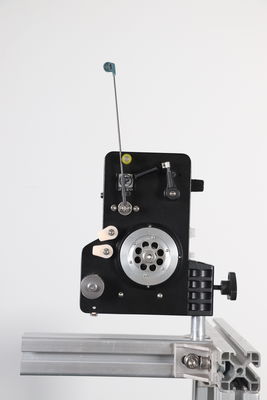

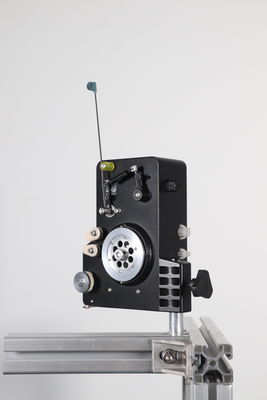

Closed Loop Control Tension 0-1000g.F Servo Tension Controller

Product Description:

Servo tensioner is changed by the traditional passive transmission line by the motor to take the initiative to send the line.through the replacement of the spring to change its tension value,the product comes with feedback tension stability system,can automatically achieve tension and stability balance.Tension is not affected by linear speed, wire cover, pulley and felt,tension is particularly stable,easy to adjust.

SETC-BRD series servo tensioner with cylinder and tension wheel on the front. The air cylinder is installed inside the casing and has attenuation function. When the ventilation pressure is not connected, the tension can be controlled by the tension adjustment knob and the upper and lower knobs of the swing arm. When a large counter tension is required in a certain section of the winding and hanging process, the air pressure can be turned on. At this time, the winding machine switches and controls the air valve through the solenoid valve to make the swing arm stopper swing a certain angle to realize the switching of the two tension values and avoid disconnection. The specific model and configuration of this series are shown in the table on the right. Users can choose the appropriate model according to the wire diameter and tension range for their own use.

Features:

• Product Name: Servo Tension Controller
• Tension Range: 0-1000g.f
• Control Method: Closed Loop Control
• Control Mode: Manual/Automatic
• Power Supply: 24V
• Operating Temperature: 0-50℃

The Servo Tension Controller is a reliable and efficient Servo Tension Adjuster , Servo Tension Manager , and Servo Tension Adjuster that features a tension range of 0-1000g.f, closed loop control method, and manual/automatic control mode. It operates at a power supply of 24V and can function within an operating temperature of 0-50℃.

Technical Parameters:

Applications:

The SET is equipped with overload protection and short circuit protection, ensuring the safety of the machinery and workers. Its protection function prevents damage to the machinery and ensures that the SET will continue to operate smoothly. Furthermore, the SF01 comes with a communication interface, RS485, which allows for easy connectivity and control.

The SET is an ideal Servo Tension Governor for use in the textile industry, specifically inWinding tension Control in Motor Manufacturing Winding tension Control in Motor Manufacturing fabric winding and unwinding machines. It can also be used as a Servo Tension Manager in wire and cable production, as well as in the printing industry.

The SET is compact in size, measuring 200mm X 150mm X 80mm. Its small size makes it easy to install and use in various machinery. Its dimensions make it ideal for use in industries where space is limited.

In conclusion, the SF01 Servo Tension Stabilizer by Precision Motive is a reliable and efficient product that can be used in various industrial applications. Its protection functions, communication interface, and compact size make it an ideal choice for industries that require precise tension control.

Support and Services:

The Servo Tension Controller product comes with comprehensive technical support and services to ensure that it operates at peak performance. Our team of experienced engineers is available to provide assistance with installation, configuration, and troubleshooting. We offer training on the product to help users maximize its potential. We also provide ongoing maintenance and repair services to keep the product running smoothly. Our customer service team is available to answer any questions or concerns regarding the product or our services.
